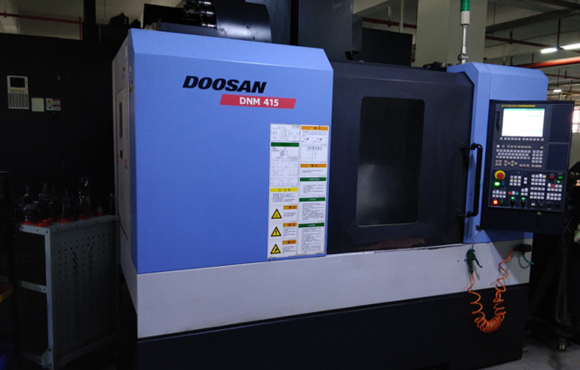

設備能力-加工中心
![]() | ![]() |
設備名稱: CNC加工中心 設備型號: DNM655 系 統: FANUC 生產廠家: 斗山(韓國) 工作范圍: 1000*500*530 精 度: 0.0025mm | 設備名稱: CNC加工中心 設備型號: DNM415 系 統: FANUC 生產廠家: 斗山(韓國) 工作范圍: 1000*500*530 精 度: 0.0025mm |

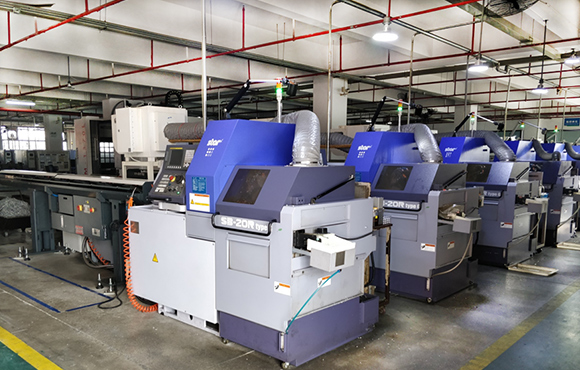

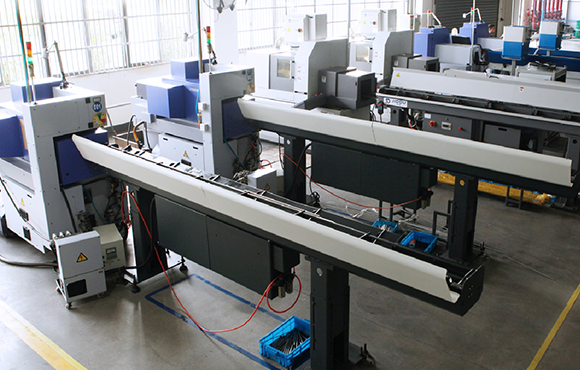

設備能力-走芯機
![]() | ![]() |
設備名稱: 走芯機 設備型號: STAR-20 系 統: FANUC 生產廠家: STAR (日本) 工作范圍: ∮20*200(D*L) 精 度: 0.0025mm | 設備名稱: 走芯機 設備型號: A20 系 統: FANUC 生產廠家: Citizen (日本) 工作范圍: ∮20*200(D*L) 精 度: 0.0025mm |

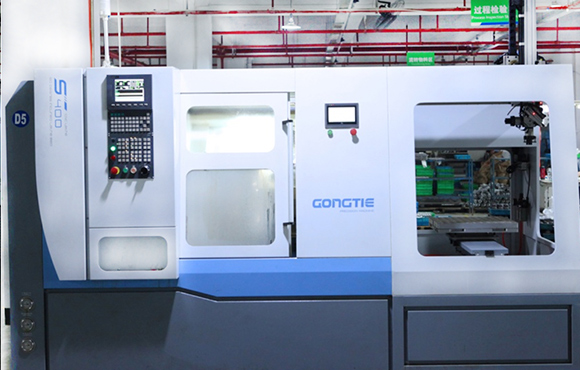

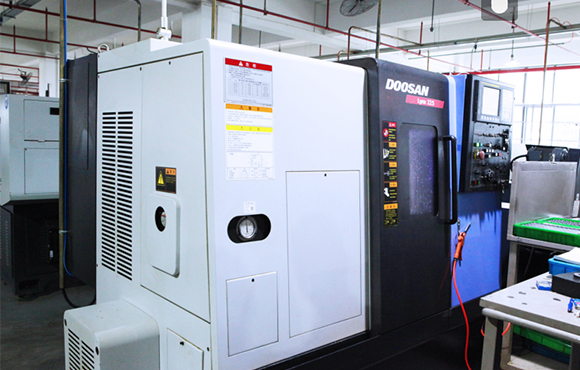

設備能力-數控車床
![]() | ![]() |
設備名稱: 數控車床 設備型號: Lynx225 系 統: FANUC 生產廠家: 斗山(韓國) 工作范圍: ∮200*500(D*L) 精 度: 0.005mm | 設備名稱: 數控車床 設備型號: S400 系 統: SYNTEC-21TA 生產廠家: 宮鐵 工作范圍: ∮200*500(D*L) 精 度: 0.005mm |
設備能力-主要設備清單
主要生產設備清單:
序號 | 名稱 | 型號 | 數量 | 設備制造商 | 系統 | 尺寸規格/工作范圍 | 機器精度 |
1 | CNC加工中心 | CMV920 | 1 | 斗山(韓國) | FANUC | 1000*500*530 | 0.0025mm |
2 | CNC加工中心 | DNM500 | 1 | 斗山(韓國) | FANUC | 1000*500*530 | 0.0025mm |
3 | CNC加工中心 | CMV435 | 2 | 斗山(韓國) | FANUC | 1000*500*530 | 0.0025mm |
4 | CNC加工中心 | 850B | 2 | 捷甬達 | FANUC | 1000*500*530 | 0.0025mm |
5 | CNC加工中心 | V435 | 2 | 斗山(韓國) | FANUC | 1000*500*530 | 0.0025mm |
6 | CNC加工中心 | DNM655 | 1 | 斗山(韓國) | FANUC | 1000*500*530 | 0.0025mm |
7 | CNC加工中心 | DNM415 | 2 | 斗山(韓國) | FANUC | 1000*500*530 | 0.0025mm |
8 | CNC加工中心 | VM1370L | 1 | 永力達 | FANUC | 726*430*510 | 0.01mm |
9 | 走心機 | STAR-20 | 10 | STAR (日本) | FANUC | ∮20*200(D*L) | 0.0025mm |
10 | 走心機 | A20 | 2 | Citizen(日本) | FANUC | ∮20*200(D*L) | 0.0025mm |
11 | 車床 | Lynx225 | 4 | 斗山(韓國) | FANUC | ∮200*500(D*L) | 0.005mm |
12 | 車床 | Lynx235 | 4 | 斗山(韓國) | FANUC | ∮200*500(D*L) | 0.005mm |
13 | 車床 | GT-400 | 20 | 宮鐵 | SYNTEC-6TA | ∮200*500(D*L) | 0.005mm |
14 | 車床 | 6136/6351A/3210S | 52 | 上海 | GSK980TDb | ∮200*500(D*L) | 0.005mm |
主要檢測設備清單:
序號 | 名稱 | 型號規格 | 生產廠家 | 精度 | |||
1 | 三坐標測量機 | Croma686 | 1 | 思瑞測量技術 | 0.001mm | ||
2 | 影像測量儀 | YVM3020C | 1 | 東莞源興光學儀器 | 0.001mm | ||
3 | 探針影像式測量儀 | YVM3030T | 1 | 東莞源興光學儀器 | 0.001mm | ||
4 | 輪廓形狀測量機 | C1600G-13 | 1 | 東京精密設備 | (1+2L/100)um | ||
5 | 洛氏硬度計 | HR-150A | 1 | 萊州華銀 | 1HRC | ||
6 | 粗糙度儀 | TR200 | 1 | 北京時代之峰 | 0.001um | ||
7 | 粗糙度儀 | SJ-210 | 1 | 三豐 | 0.001um | ||
8 | 同心度測量儀 | JS-A-10WC | 1 | 東莞市津上機電 | 0.001mm | ||
9 | 數字特斯拉計 | HT20 | 1 | 上海亨通磁電 | 0.1mT | ||
10 | 渦流測厚儀 | ED300 | 1 | 沈陽天星試驗儀器 | 0.1um |
Production Details
Business Type | OEM& ODM Manufacturer (Custom CNC Machining Services) |
Standard | JIS, ANSI |
Products Range | Automobile parts,wind power generation equipment accessories,wind power generation equipment accessories, ER fluid, medical apparatus and instruments, standardization of custom, moto parts, machinery parts, lighting components, hardware accessories, electric motor products, etc |
Agricultural machinery, electrical appliances, furniture hardware | |
Materials | 1.Stainless Steel: SS201, SS303, SS304, SS316 etc. |
2.Carbon Steel: AISI 1045, 9SMnPb28 etc | |
3.Brass: C36000 (C26800), C37700 (HPb59), C38500(HPb58), C27200(CuZn37), C28000(CuZn40) etc. | |
4.Bronze:C51000, C52100, C54400, etc. | |
5.Iron:Grey iron and ductile iron | |
6.Aluminum:6061, 6063,7075,5052 etc. | |
Machining | cleaning, turning, milling, drilling, grinding |
Main equipments | CNC lathe, cnc milling, stamping machine, |
automatic lathe, grinder, thread rolling machine, tapping | |
drilling machine, bending machine, etc | |
Measuring & testing equipments | Profile Projector, Rockwell Hardness Tester, Vickers Hardness Tester, Roughness Tester, Salt Spray Test Machine, Micrometers, height gauge, etc. |
Accuracy | Accuracy Of Machining:+/-0.005mm |
Accuracy Of Grinding:+/-0.005mm | |
Surface Roughness:Ra0.8 | |
Parallelism:+/-0.005mm | |
Verticality:+/-0.005mm | |
Concentricity:0.003mm | |
Surface Treatment: | Polishing, Deburring, Chrom Plate, Ni Plated, Zine plated, Silver platinng |
Clear anodizing, Anodizing black, Carburizing Nitriding, Heat Treatment, etc... | |
MOQ | 1 Pcs. Depending on detailed orders. Accept order for small batches. |
DRW Format | DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, X_T, etc... |
QC System | 100% Inspection before shipment |
Certificate | ISO9001: 2008,TS16949,SGS Factory Audit |
Payment Term | 30%T/T+70%T, Western Union, PayPal, L/C |
Trade Terms | FOB,CIF,L/C |
Lead time | 12~45 days after confirming |
Sample Lead Time | 3-7 Working Days. We supply free sample |
Transport Package | Full consideration of practical situation: foam/wooden box, anti-rust paper, small box and carton, etc. |
Our Advantages | Reliable Quality |
Competitive Price | |
High precision, high quality, tight tolerance | |
Continuous Improvement | |
Defect-Free Products | |
On-Time Delivery | |
Customer Satisfaction | |
Excellent After-Sales Service |
Equipment List
We has professional equipments.
Shijin Production Machinery Equipment List | |||||||
No. | Name | Model | Q'TY | Equipment Manufacturer | System | Size Spec./ Range of Work | Machine Accuracy |
1 | CNC lathe | Lynx225 | 6 | DOOSA (Korea) | FANUC | ∮200*500 (D*L) | 0.005mm |
2 | CNC lathe | 6132 | 4 | Shanghai SIGMA | GSK980TDb | ∮200*500 (D*L) | 0.005mm |
3 | CNC lathe | 6136 | 20 | Shanghai SIGMA | GSK980TDb | ∮200*500 (D*L) | 0.005mm |
4 | CNC lathe | 6150 | 1 | Shanghai SIGMA | GSK980TDb | ∮200*500 (D*L) | 0.005mm |
5 | CNC lathe | 6312 | 4 | Shanghai SIGMA | GSK980TDb | ∮200*500 (D*L) | 0.005mm |
6 | CNC lathe | CM-36 | 2 | Gong Tie | SYNTEC-3TA | ∮200*500 (D*L) | 0.005mm |
7 | CNC lathe | GT-36 | 6 | Gong Tie | SYNTEC-6TA | ∮200*500 (D*L) | 0.005mm |
8 | CNC lathe | GT-4000 | 2 | Gong Tie | SYNTEC-6TA | ∮200*500 (D*L) | 0.005mm |
9 | CNC lathe | S36 | 4 | Gong Tie | SYNTEC-21TA | ∮200*500 (D*L) | 0.005mm |
10 | CNC lathe | S36C | 12 | Gong Tie | SYNTEC-21TA | ∮200*500 (D*L) | 0.005mm |
11 | CNC lathe | S400 | 2 | Gong Tie | SYNTEC-21TA | ∮200*500 (D*L) | 0.005mm |
12 | CNC lathe | 6351A | 2 | Zhejiang | GSK980TDb | ∮200*500 (D*L) | 0.005mm |
13 | CNC lathe | 3210S | 4 | Jiangxi | GSK986TDa | ∮200*500 (D*L) | 0.005mm |
14 | CNC lathe | SPYDER-6C | 2 | SCANVIA | Mitsubishi | ∮200*500 (D*L) | 0.005mm |
15 | CNC turning & milling lathe | 4 | Juxing | WASHING | |||
16 | CNC precision automatic lathe(Swiss-type lathe) | STAR-20 | 9 | STAR (Japan) | FANUC | ∮20*200 (D*L) | 0.0025mm |
17 | CNC precision automatic lathe(Swiss-type lathe) | A20 | 2 | Citizen (Japan) | FANUC | 1000*500*530 | 0.0025mm |
18 | CNC machining center | CMV920 | 1 | DOOSA (Korea) | FANUC | 920*510*510 | 0.0025mm |
19 | CNC machining center | DNM415 | 1 | DOOSA (Korea) | FANUC | 762*435*510 | 0.0025mm |
20 | CNC machining center | DNM500 | 1 | DOOSA (Korea) | FANUC | 1000*500*530 | 0.0025mm |
21 | CNC machining center | DNM655 | 1 | DOOSA (Korea) | FANUC | 1270*670*625 | 0.0025mm |
22 | CNC machining center | V435 | 1 | DOOSA (Korea) | FANUC | 560*430*570 | 0.0025mm |
23 | CNC machining center | VA3 | 2 | TSUGAMI(Japan) | FANUC | 650*400*350 | 0.0025mm |
24 | CNC machining center | 850B | 2 | Jie Yong Da | FANUC | 1000*500*530 | 0.0025mm |
25 | CNC engraving and milling machine | JK-40M | 2 | Jin Hua | 400*600*400(L*W*H) | 0.005mm | |
26 | Surface grinder | M7130H | 1 | Hangzhou | 2270*1900*2300 | 0.01mm | |
27 | Cylindrical grinder | M1412 | 1 | Wuxi | 320*800 | 0.01mm | |
28 | Centerless grinder | M1040 | 1 | Wuxi | 2270*1900*2300 | 0.01mm | |
29 | Centerless grinder | MT1040A | 1 | Wuxi | 2270*1900*2300 | 0.01mm | |
30 | Hook shot blasting machine | Q372 | 1 | Wuxi | |||
31 | Ultrasonic Cleaner | JTM-8120AD | 1 | GTSONIC | |||
32 | Ultrasonic Cleaner | 1 | Zhangjiagang | ||||
33 | Sand blasting machine | SJK9070 | 1 | Changzhou | |||
34 | Vibration grinder | Large | 1 | ||||
35 | Vibration grinder | Small | 1 | ||||
36 | Laser marking machine | CT-LMG50 | 1 | Yancheng | |||
37 | K01 Screw Machine | TA-VFD-30A | 1 | TOPTEK | |||
38 | K02 Screw Machine | DL-20A | 1 | DELI | |||
Total | 110 |
FAQ
1.Q: Are you Factory or Trade company?
A: We are professional factory,so our price is very competitive ex-factory price, and you are welcome to visit the factory.
2.Q: How about the quality of your product?
A: 100% inspection during production.
3.Q: What kinds of machining service do you have?
A: Gringing, Machining, CNC milling and turning,CNC milling, CNC
metal, grinding, stamping, casting and forging parts, assembly service.
4.Q: What material of the product can you supply?
A: Carbon Steel, Alloy Steel, Stainless Steel, Brass, Copper or according to your requirement.
5.Q: What's the delivery time?
A: For products in stock, within 5-7 days after receiving your payment. For custom order, about 20-35 days after confirmed every details.
6.Q: What's your packing?
Full consideration of practical situation: foam/wooden box, anti-rust paper, small box and carton, etc.
7.Q: What about the warranty?
A: We are very confident in our products, and we pack them very well with
PE Foam and carton box+wood pallet to make sure the goods in well protection.
8.How to order High Precision OEM and Customized Machining Parts for Industrial Machinery ?
* You send us drawing or sample
* We carry through project assessment
* We give you a design
* You think the design is ok
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
9.Do you provide customized Machining parts?
Yes. Customers give us drawings and specifications, and we will manufact accordingly.
